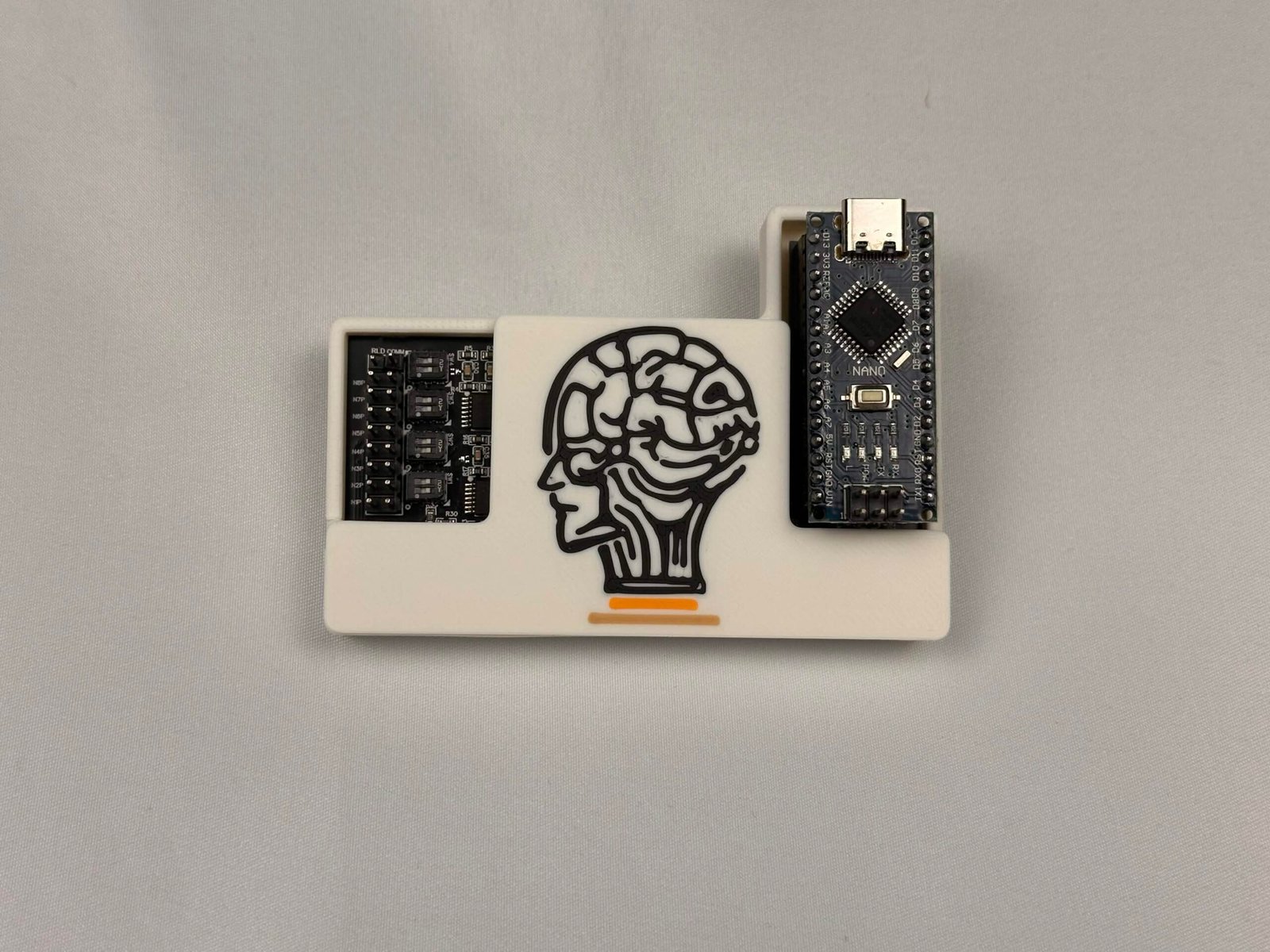

NeuroPawn Knight Board

The NeuroPawn Knight Board is an 8-channel biosignal amplifier optimized for use as an EEG amplifier. It features adjustable gain from 1 – 12 times. It comes with 8 channels that are individually addressable through software. Each channel can be mapped to it’s own individual reference or a common reference. There is an on-board bias driver which cancels out common-mode noise (noise that appears on the surface of the body). It is designed for a wired connection to an Arduino Nano, a micro-controller which many are familiar with. The wired connection minimizes data-loss in the 125 samples/s that the board produces. It can be used for EEG, EMG, ECG, EOG, and any other biosignal application.
